By Lily / Last update November 18, 2024

When Upgrade M.2 SSD on Your Computer?

When will you want to upgrade M.2 SSD? Many users want to replace the original M.2 SATA to a larger M.2 SATA SSD to get more storage space to store more software, games, videos, photos, and documents. What’s more, some of them want to upgrade M.2 SATA SSD to NVMe SSD to get better computer performance. Software and large files on the computer can be loaded faster.

💡 Quick Comparison: M.2 SATA SSD vs. M.2 NVMe SSD

Aspect

M.2 SATA SSD

M.2 NVMe SSD

Form Factor

M.2

M.2

Interface

SATA

PCIe

Speed

Slower (Compared to NVMe)

Faster (High Speeds)

Gaming Performance

Good

Excellent

Performance in General

Adequate

High Performance

Price Example (1TB)

Around $100

Starts at around $200

Use Cases

Everyday Use, General Tasks

Intensive Tasks, Gaming

Best M.2 Cloning Software without Boot Issues

If you use a disk cloning software to help you upgrade M.2 SSD contains Windows on your computer, you can avoid the trouble of reinstalling the operating system, save time and effort, and do not need to manually reconfigure the system to the original settings. Then, what’s the best M.2 SSD cloning software?

The computer's own system does not have a built-in special disk cloning software, so it is particularly important to find a reliable M.2 cloning software to help you upgrade your M.2 SSD. AOMEI Backupper Professional is a powerful third-party software that can help you migrate your system and data to the new M.2 SSD with just a few clicks.

It ensures the integrity of the data and ensures that you can safely boot from the new hard drive. See what this powerful software can do for you:

Different clone methods: You can perform Disk Clone (clone an entire hard disk to another), Partition Clone (clone a partition or volume from one to another) and System Clone (clone or migrate only system to SSD or other disk).
Clone a wide range of storage devices: You can use it to clone HDDs, SATA SSDs, NVMe M.2 SSDs, USB flash drives, and SD cards, etc.
Support different disk partition styles: It allows you to clone GPT disk to MBR disk or clone MBR disk to GPT disk directly. You don't need to convert the partition style.
Clone hard drives of different sizes: It provides you with Intelligent Clone and Sector-by-sector Clone. The former one allows you to clone a larger drive to a smaller drive. The latter one allows you to make a 1:1 copy of the hard drive.

After understanding the brief information of this M.2 SSD cloning software, I will show you how it works when you want to upgrade M.2 SSD without reinstalling Windows. Click the download button below to install it on your computer.

Easiest hard drive and SSD clone software for Windows PC.

Free Download Win 11/10/8.1/8/7/XP
Secure Download

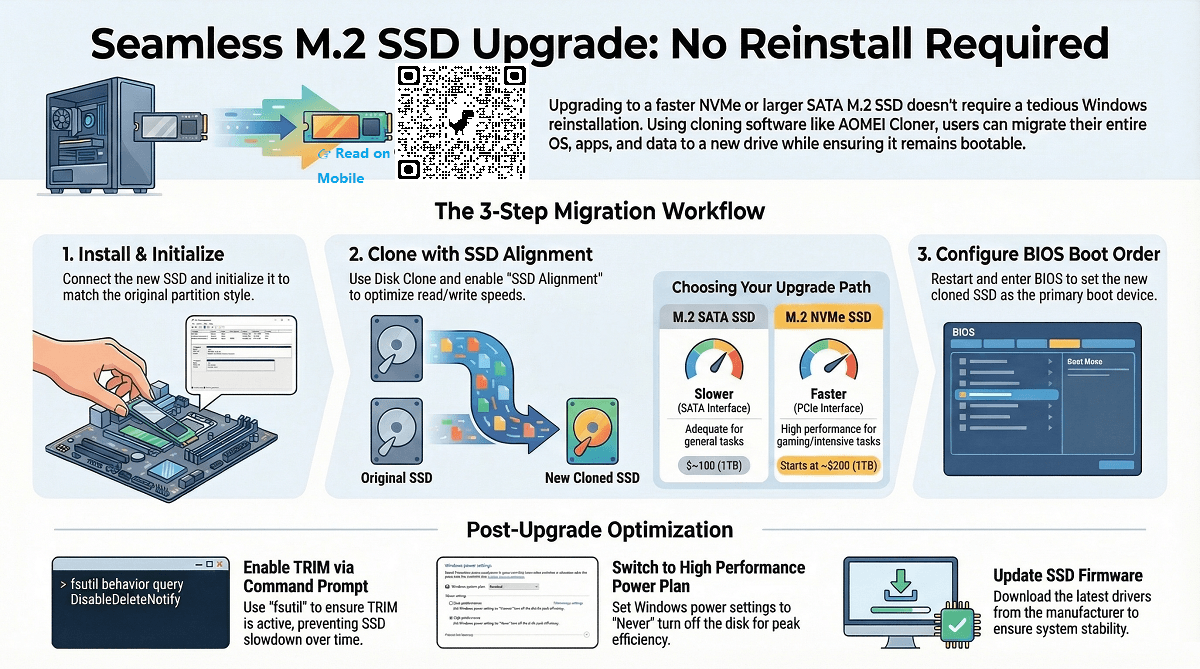

How to Upgrade M.2 SSD on PC or Laptop

Here, I take upgrading M.2 SSD to larger M.2 SATA SSD as an example.

Note: The data on the target location will be overwritten after the cloning process. If you plan to clone Windows to a used M.2 SSD and there is important data on it, please backup files in advance.

#1. Install and Initialize New M.2 SSD

Before upgrading the M.2 SSD, you need to do some preparations. Follow the detailed steps below.

1. Turn off the computer and disconnect the power source. Then install the new M.2 SSD in the laptop/desktop.

  • If your laptop/desktop has only one SSD slot, connect the new M.2 SSD to the computer via M.2 SATA SSD to USB adapter.
  • If your laptop or desktop contains two SSD slots, open the back cover of the laptop or the computer tower case with a tool. Find the M.2 SSD slot, insert the SSD into the slot, and then fix it with a screwdriver.

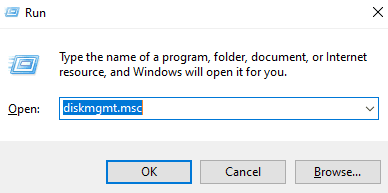

2. Next, restart your computer. Press Win + R to open the Run dialog box, type diskmgmt.msc and click OK to open Disk Management.

Open Disk Management

3. Right-click on the new SSD and select Initialize Disk. Set the partition style the same as the source disk (MBR or GPT) and click OK to confirm.

Select Partition Style

#2. Clone M.2 SSD to Larger M.2 SSD without Losing Any Data

After the preparation work is completed, you can use AOMEI Backupper to clone M.2 SSD to larger M.2 SSD. Please follow the graphic tutorial for details.

Step 1. Launch AOMEI Backupper, click Clone in the left panel and select Disk Clone on the right menu.

Disk Clone

Step 2. Select the original M.2 SSD containing Windows as the source disk and click Next.

Select Source Disk

Step 3. Select the larger M.2 SATA SSD as the destination path to receive cloned data and click on Next.

Select Destination Disk

Step 4. Then you will see the Operation Summary page. Check SSD Alignment option to improve the writing & reading speed of SSD disk. Confirm all other settings and click Start Clone.

Start Clone

Tips:
💜 Sector by Sector Clone: It allows you to clone all sectors of a hard drive to another one including the bad sectors or empty sectors. And it will make the Edit Partitions feature unavailable.
💜 Edit Partitions: You can adjust partition size of destination disk with this feature to fix the “cloned hard drive shows wrong size” issue. Also, you can use it to convert disk type if the destination disk’s partition style is different from the source disk’s.

#3. Safe Boot from Cloned M.2 SSD

1. To boot from a cloned M.2 SSD: If your computer has only one SSD slot, you should replace the old M.2 SSD with the cloned M.2 SSD; if there are two slots, you can keep both the old and new SSD installed.

2. Restart PC and press F2/F8/F11 or Del to enter BIOS, and change the boot order to boot from the cloned SSD.

Change Boot Order

3. Press F10 to save the changes, then restart the computer.

Bonus: Optimize Windows for the New SSD

After successfully upgrading your M.2 SSD and booting into Windows, there are several steps you can take to ensure your system runs smoothly and efficiently. These optimizations will help you get the most out of your new SSD, enhance performance, and maintain system stability.

Enable TRIM

TRIM is a command that helps maintain the performance of your SSD by informing it of which blocks of data are no longer in use and can be wiped internally. This prevents the SSD from becoming slower over time due to unnecessary data buildup.

1. Open Command Prompt as an administrator.

2. Type the command: fsutil behavior query DisableDeleteNotify.

3. If the result is 0, TRIM is enabled. If the result is 1, type fsutil behavior set DisableDeleteNotify 0 to enable it.

Update Drivers

Keeping your SSD’s firmware and drivers up to date is crucial for optimal performance and compatibility with your system. You can visit the SSD manufacturer's website to download and install the latest firmware and drivers. Or you can use Device Manager to check for driver updates:

1. Right-click on the Start button and select Device Manager.

2. Expand the Disk Drives section, right-click on your SSD, and select Update Driver.

Adjust Power Settings

Windows power settings can affect your SSD’s performance. Adjusting these settings can help ensure your SSD operates efficiently.

1. Open Control Panel and go to Power Options.

2. Select the High Performance plan or create a custom plan.

3. Ensure that settings like "Turn off hard disk after" are set to "Never."

Conclusion

This article tells you in detail how to upgrade M.2 SSD without reinstalling Windows. If you follow the steps and use reliable cloning software, you won't encounter any startup problems. No need to reinstall the system can save you a lot of time and effort, and you don’t need to manually reconfigure the system to its original settings.

In addition to the Clone function, it also embeds Backup, Restore and File Sync functions to provide daily data protection for your computer. What are you waiting for? Try it now!
