Samsung Magician Clone Boot Drive: How-To Guide & Easier Tool
Cloning your boot drive with Samsung Magician can help you upgrade to a faster SSD without reinstalling Windows. Learn how to use Samsung Magician and an easier tool to clone OS drive from this page.
While primarily known for optimizing SSD performance, many users wonder if they can use Samsung Magician to clone OS drive for a seamless migration. In this guide, we’ll walk you through the entire cloning process and offers an alternative tool to improve your disk cloning experience.
How to use Samsung Magician to clone drive
Using Samsung Magician to clone your boot drive to a Samsung SSD is a straightforward process. However, Samsung Magician itself does not have a built-in cloning tool—it integrates with Samsung Data Migration (SDM) software, which is specifically designed for this purpose. Follow the instructions below to clone your boot drive onto a Samsung SSD using SDM:
1. Connect your new Samsung SSD and make sure it is equal or larger in capacity than the used space on the source drive.
- If cloning to an internal SSD, install it in your PC (SATA or NVMe slot).
- If using an external SSD, connect it via USB (preferably USB 3.0 or higher).

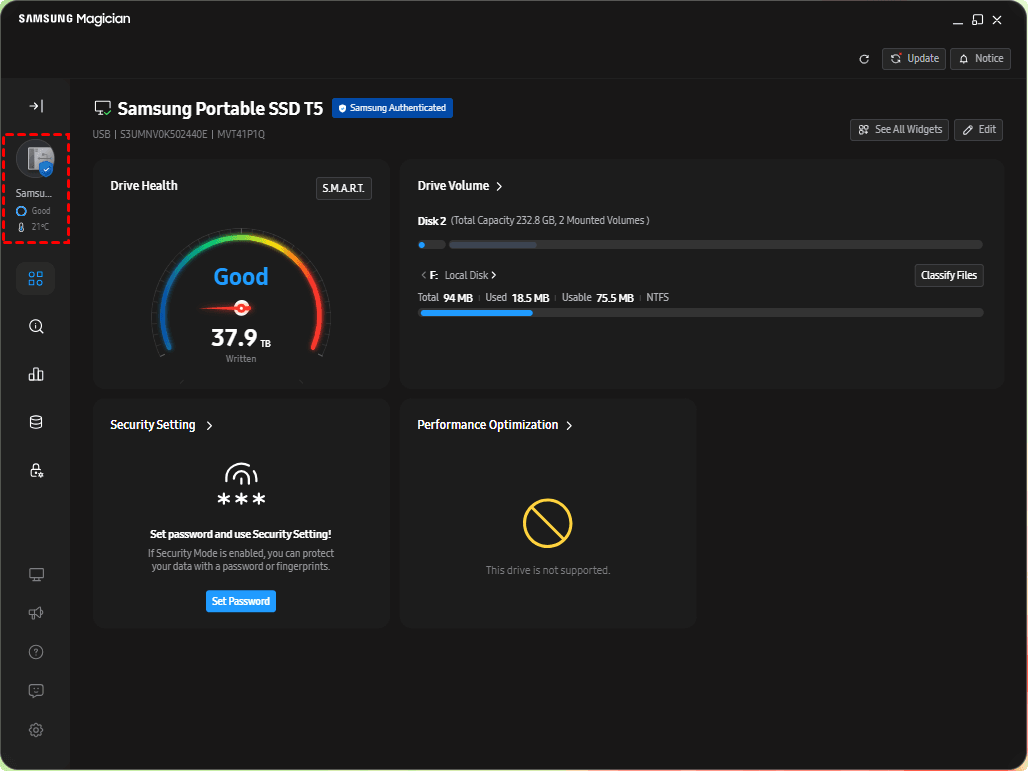

2. Download and install Samsung Magician. Launch Samsung Magician and select the current system disk from the disks shown above.

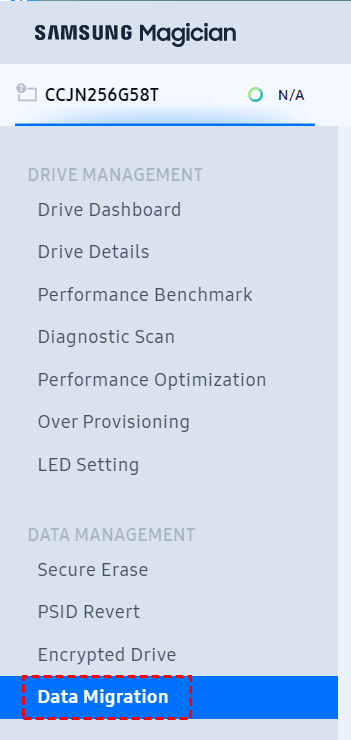

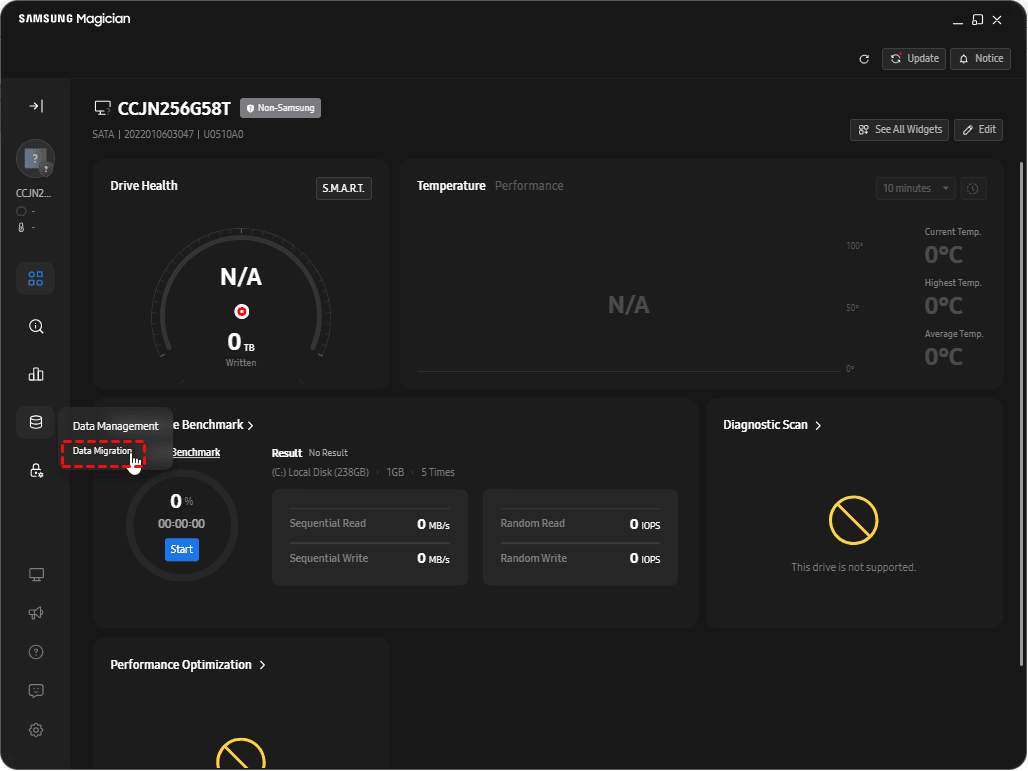

3. Go to the Data Migration tab.

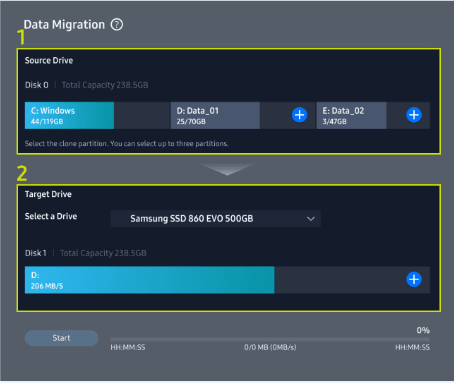

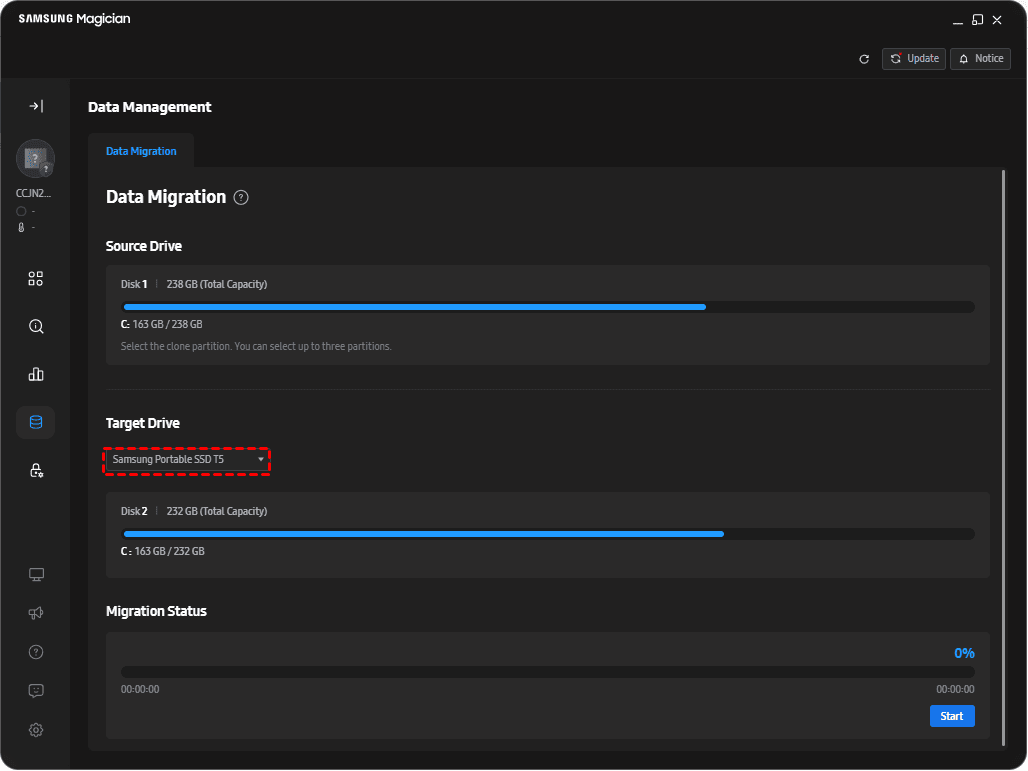

4. Data Migration will automatically scan and choose the C drive as source drive. You just need to select the Samsung SSD as the destination.
✍ Notes:
◆If the source drive has 2 or more partitions, a "+" button will appear on the right side of each partition. To include a partition in the clone, click the "+" button.
◆If the target drive has 2 or more partitions, an "X" button will appear on the right side of each partition. To exclude a partition from being copied, click the "X" button.
5. Click Start to begin the cloning process. Ensure no programs are running during the cloning to prevent errors.
6. Set the new SSD as the boot drive.
- Shut down your computer and remove the old boot drive (if replacing it).
- Enter BIOS/UEFI by pressing F2, F12, DEL, or ESC (varies by manufacturer) during startup.
- Navigate to the Boot Order section and set the Samsung SSD as the primary boot device.
- Save changes and restart your computer. If everything was cloned correctly, your system should boot from the new SSD without issues.
Limitations of the Data Migration feature in Samsung Magician
It seems not difficult to use Samsung Magician to clone disk. However, there are some limitations you need to know when using the Data Migration feature in Samsung Magician:
🙁Data Migration only supports Samsung-branded SSDs as the target drive. If you attempt to clone your system to an SSD from another manufacturer, the tool will refuse to proceed.
🙁If your boot drive is encrypted (e.g., with BitLocker) or contains bad sectors, Samsung Data Migration may fail or produce errors.
🙁Data Migration does not support cloning from dynamic disks.
🙁Data Migration does not allow manual partition resizing during the cloning process.
Alternative tool to clone OS drive to Samsung SSD
If you are disappointed with the limitations of Samsung Data Migration and want a more reliable and flexible solution, AOMEI Cloner is a great alternative.
⭐ Supports All Brands – Unlike Samsung’s tool, AOMEI Cloner works with any SSD, not just Samsung. You can use it to clone HDD to WD SSD, Crucial SSD, and Kingston SSD, etc.
⭐ Selective Cloning – You can choose to clone the entire disk or only the OS partition.
⭐ Intelligent Clone – Migrate from a larger HDD to a smaller SSD by copying only used sectors.
⭐ Bootable Media Creation – Clone your drive even if Windows won’t start by using a bootable USB.
⭐ Supports Dynamic Disks – Easily clone OS drives formatted as dynamic disks without conversion.
Download AOMEI Cloner and use it to clone OS drive to Samsung SSD with the following steps:
Easiest HDD/SSD clone software for Windows PC & Server
1. Connect the Samsung SSD to your computer via a SATA-to-USB adapter (for external cloning) or install the SSD internally.
2. In AOMEI Cloner, go to Clone > Disk Clone to copy the entire system disk. If you want to migrate only the OS, choose System Clone instead.
3. Select your boot drive as the source disk and choose the new Samsung SSD as the destination disk.
4. On the Operation Summary page, review the details of the source and destination disks.
- If the two disks have different partition styles (one is MBR and the other is GPT), click Edit Partitions > Convert the destination disk from MBR to GPT (or GPT to MBR) to ensure compatibility. This prevents boot issues caused by a BIOS/UEFI mismatch.
- If the new SSD is larger than the original HDD, click Edit Partitions > Add unused space to all partitions or Manually adjust partition size to fully utilize the SSD's capacity.
5. Enable SSD Alignment to optimize the Samsung SSD performance and click Start Clone. It will handle the migration seamlessly.
6. After cloning, enter BIOS and set your new Samsung SSD as the primary boot device.
Conclusion
Using Samsung Magician to clone boot drive can significantly boost your system’s performance. While the operations are simple, it comes with several limitations, such as lack of support for non-Samsung drives, dynamic disks, and selective partition cloning.
For a more reliable and flexible solution, AOMEI Cloner is an excellent alternative. It supports all SSD brands, allows selective cloning, and works even when your system won’t boot. What’s more, it is professional Windows backup software allowing you to backup Windows 11/10/8/7, etc. Why not give it a shot?
