How to Upgrade SSD & RAM on Zephyrus G14 (No Data Loss)

Is Zephyrus G14 Upgradable?

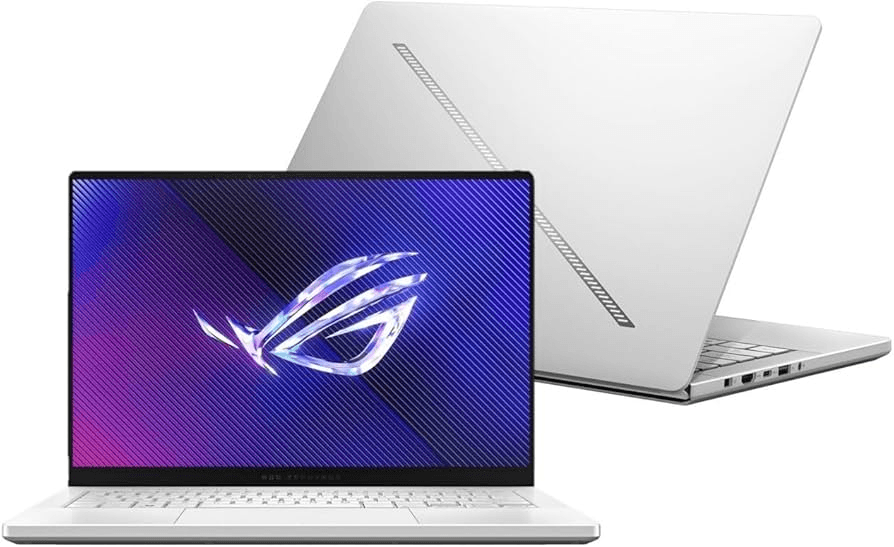

ASUS ROG Zephyrus G14 is a compact but powerful gaming laptop that blends portability with high-end performance. But when you feel a lag or run out of storage, you may wonder: Is the Asus Rog Zephyrus G14 upgradable? Yes - both the SSD and RAM are upgradable.

• SSD: The Zephyrus G14 laptop uses an M.2 PCIe SSD, and it allows you to swap it out for a larger and faster one.
• RAM: Generally, the G14 models come with either 8GB or 16GB soldered to the motherboard. However, it also includes an additional SODIMM slot, which means you can expand the total RAM capacity up to 32GB, depending on the model.

It's worth noting that Zephyrus G14 SSD upgrade is different from Zephyrus G14 RAM upgrade. Upgrading SSD aims to increase storage space for games and media and improve overall system speed and boot times; while upgrading RAM helps you increase the ability to handle multiple tasks and large files simultaneously.

What You'll Need for Zephyrus G14SSD Upgrade?

Before diving into the Zephyrus G14 upgrading SSD process, gathering your tools and components is necessary. Here's what you'll need:

🎯 A new compatible M.2 NVMe SSD (at least PCIe Gen3 x4, Gen4 preferred for max performance)
🎯 Screwdrivers (preferably a precision Phillips #0 and #1)
🎯 Plastic prying tool (to remove the bottom cover safely)
🎯 Thermal pad (optional) for better SSD heat management
🎯 An external NVMe enclosure or USB-to-NVMe adapter for disk connection to laptop
🎯 Reliable disk cloning software like AOMEI Cloner to migrate everything from your old disk to the new SSD

How to Upgrade SSD on Zephyrus G14 Without Reinstalling Windows

ASUS Zephyrus G14 SSD upgrade is not a simple disk swap. Since the system, installed programs and files on the old disk are not automatically migrated to the new disk, but replacing the SSD doesn't mean a fresh install either. By using professional disk cloning software like AOMEI Cloner, you can duplicate your current drive onto the new one, exactly as it is.

With an intuitive interface, this cloning software supports data migration from HDD to SSD, SATA SSD to NVMe SSD, and NVMe SSD to NVMe SSD, and it works with PCIe 3.0/4.0 drives. Also, it is capable of cloning hard drives of different sizes, like cloning 1TB HDD to 500GB SSD or vice versa.

AOMEI Cloner

Best System and Disk Cloning Software

• Offer Disk Clone, System Clone, and Partition Clone for various cloning needs.
• Able to clone hard drive with bad sectors by skipping the bad sectors automatically.
• Provide SSD Alignment to optimize the performance and extend lifespan of the target SSD.
• Resize the target SSD partitions during cloning to make full use of its space.
• Clone a disk without shutting down your system or interrupting any work.

Free Download
Win 11/10/8/7/Server

100% Secure

To perform an ASUS G14 memory upgrade with a new SSD without losing anything, download the AOMEI Cloner on your Zephyrus G14, and use it to clone your old drive to new SSD following the guide below.

Step 1. Connect the new SSD via an external NVMe enclosure or adapter, and make sure it is detectable.

Step 2. Run the AOMEI Cloner software, choose Clone from the left panel, then choose Disk Clone.

Step 3. Select your current internal drive as the source disk.

Step 4. Select the newly connected SSD as the destination disk.

Step 5. Tick SSD Alignment to optimize performance. Click Start Clone and wait for the process to complete.

Important tips:

Don't check the Sector By Sector Clone feature if you are cloning to a smaller drive, as it will copy all sectors of the source drive, including unused space and hidden/deleted files.

With the Edit Partitions feature, you are able to adjust the partition size of destination SSD to make full use of the new SSD space and avoid boot failure due to different disk types.

Step-by-Step Guide for Zephyrus G14 SSD & RAM Replacement

Now that you've cloned your drive, it's time to get ASUS ROG Zephyrus G14 hard drive upgrade by replacing it with the cloned SSD.

To let Zephyrus G14 change SSD:

Step 1. Power down and unplug any connected devices from the Zephyrus G14 laptop.

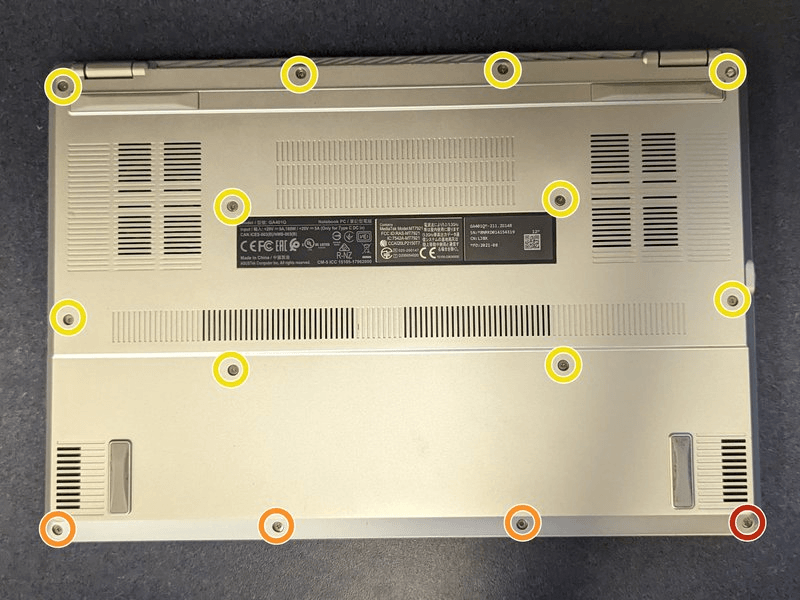

Step 2. Use a small Phillips-head screwdriver to remove all screws. Keep them safe!

Step 3. Gently pry open the back panel using a plastic tool.

Step 4. You'll find the M.2 slot next to the cooling system. Unscrew the retaining screw, gently pull out the SSD.

Step 5. Insert the new SSD into the same slot. Secure it with the original screw.

Step 6. Snap the back panel in place and screw it back in.

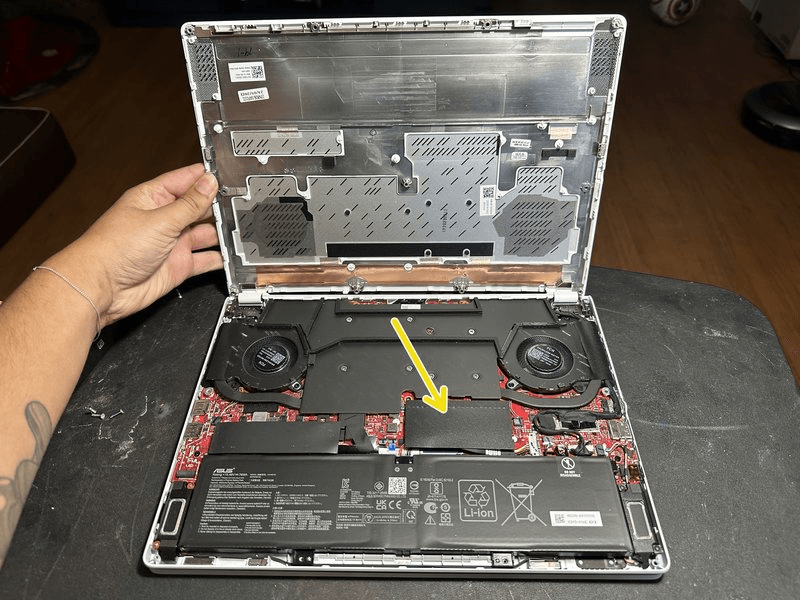

To let ASUS R14 upgrade RAM:

Only one slot is upgradeable, because the other 8GB/16GB is soldered onto the motherboard. If you are replacing, release the clips and pull the stick out. Align the notches and press firmly until it clicks into place.

FAQs about Zephyrus G14 SSD Upgrade

1. Can you upgrade SSD on ASUS ROG Zephyrus G14?

Yes. The Zephyrus G14 includes an M.2 PCIe NVMe slot that is fully upgradable. You can perform a seamless Zephyrus G14 SSD upgrade using AOMEI Cloner to increase storage capacity or enjoy faster speeds without reinstalling Windows.

2. Does Zephyrus G14 have two SSD slots?

Most Zephyrus G14 models come with a single M.2 SSD slot. So, you'll likely need to replace the existing drive rather than add another.

3. Zephyrus G14 RAM upgrade & SSD upgrade, which is better?

Both upgrades offer performance gains, but their benefits differ: SSD upgrade is for faster boot times and quicker game and app loading; while RAM upgrade is for better multitasking, improved performance in memory-intensive tasks, and smoother gameplay with large open-world titles.

The Bottom Line

The Zephyrus G14 SSD upgrade is one of the most useful ways to enhance your laptop's performance without shelling out for a new machine. With the right tools and a little care, you can swap out your SSD and even boost your RAM in under an hour - all while keeping your data the same.

Thanks to tools like AOMEI Cloner, you can transfer all data, including Windows OS, settings, installed programs, and individual files from one drive to another securely and quickly. Also, it is capable of only migrating OS or cloning specific partitions between HDDs and SSDs with ease.
