By Lily / Last update November 11, 2024

When restore Windows 10 backup to another computer?

Usually, you can create a system image and use it to restore the same computer when needed. But sometimes, you may need to restore the Windows 10 backup to dissimilar hardware. For instance:

  • You purchase a new computer and want to move Windows 10 to the new one.
  • You want to upgrade the motherboard and CPU without reinstalling.
  • You need to migrate Windows 10 OS to help fix a failing computer of your friend or family member.
  • As an administrator, you want to deploy Windows 10 image to other computers with dissimilar hardware.

In these cases, your target computer has different hardware from the one used to create the backup, which causes compatibility problems when recovering. So, can you actually restore a Windows 10/11 backup to another PC with different hardware and what is the easiest way to do it? Keep reading to get the answer.

Can you backup Windows 10 and restore on another computer?

When restoring Windows 10 system image to a different computer, there are two common issues you may encounter:

 Issue I: Hardware compatibility

When you install Windows on a computer, it is set up using drivers specific to that computer's motherboard and chipset. Therefore, when you create a full system image of your old computer and restore it to different hardware, you are likely to receive errors about "hardware abstraction layer" and "hal.dll", or encounter a BSOD saying: Stop 0x0000007B after booting the new computer. Inaccessible_Boot_Device.

This is very common with earlier operating systems such as Windows XP/Vista/7/8. On newer systems such as Windows 11 and Windows 10, the situation may be better, but you may still encounter various errors using the built-in Backup and Restore tool.

To circumvent recovery and boot errors as much as possible, you may need to use a backup tool that supports dissimilar hardware restore.

 Issue II: License type

Having resolved the above issues, you still need to check your license type to determine if it can be migrated to a different computer.

For OEM licenses that are pre-installed on your computer by the manufacturer, they are tied to the motherboard and can only be migrated between the same hardware; if you are using a Retail license purchased from a local shop or online retailer, you can transfer it between different hardware.

To check your license type, you can:

  • Press Win+R to bring up the Run window, type "cmd" and press Enter.
  • In the Command Prompt window, type "Slmgr /dli" and press Enter. A pop-up window will then appear with information including your license type.

How to let Windows 10 system image restore to different computer

In the case that Windows tools couldn’t fix existing issues, you need the help of third-party backup software. The one I use here is AOMEI Backupper Professional. It supports any version of Windows 11/10/8.1/8/7/Vista/XP, and includes all the features you need in one place:

💛 System Backup: Backup your entire system, including the operating system, installed programs, settings, and personal data on the system drive.
💛 Create Bootable Media: Create a bootable USB drive or CD/DVD that can be used to restore your system or perform recovery tasks even if Windows fails to boot.
💛 Universal Restore: Help you restore system image to computer with dissimilar hardware securely. It also applies to physical-to-virtual (P2V) and virtual-to-physical (V2P) migration.

Download AOMEI Backupper right now!

Easiest backup and recovery software for Windows PC.

Free Download Win 11/10/8.1/8/7/XP
Secure Download

There are three main steps involved to have Windows 10 backup restore to different computer: create a bootable USB, create a system image and run system image recovery. Learn the detailed steps below.

Step 1: Create WinPE bootable USB

1. Plug in a USB flash drive and install AOMEI Backupper on the source computer.

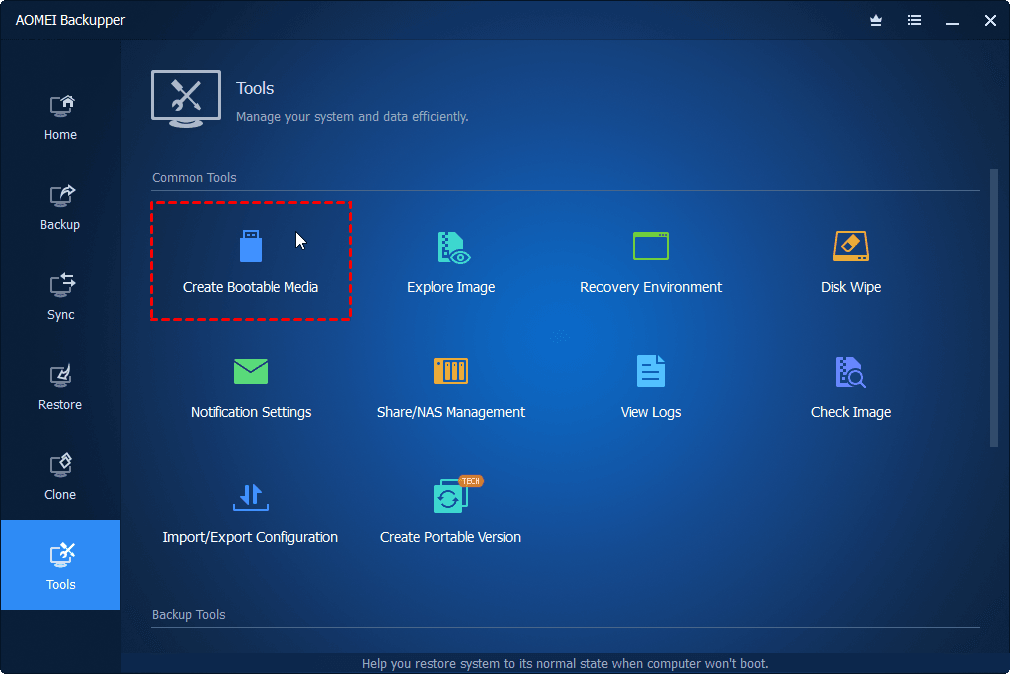

2. Run the program. Then, click Tools > Create Bootable Media.

Create Bootable Media

3. Select Windows PE option for a better performance.

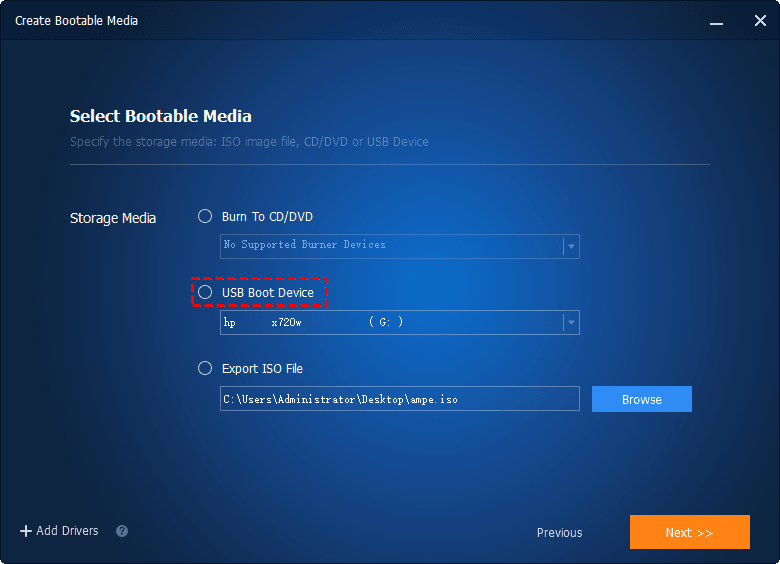

4. Select USB Boot Device and click Next to start creating it.

USB Boot Device

Tip: The selected USB drive will be formatted before creation. Please back up important files in advance.

Step 2: Create Windows 10 system image

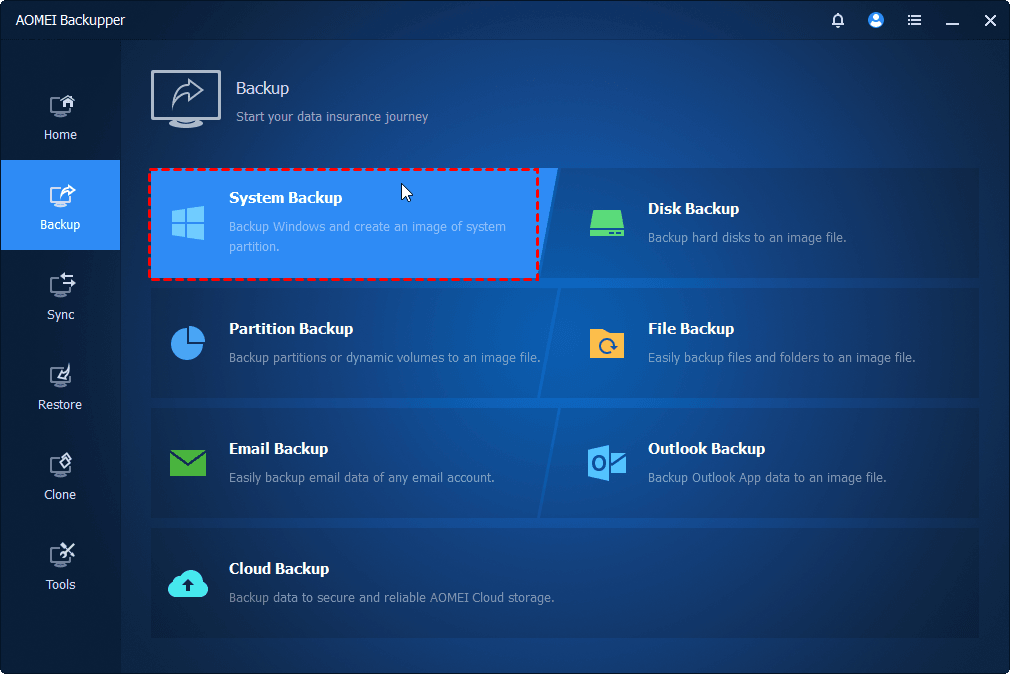

1. Run AOMEI Backupper on the source computer. Then, click Backup > System Backup.

System Backup

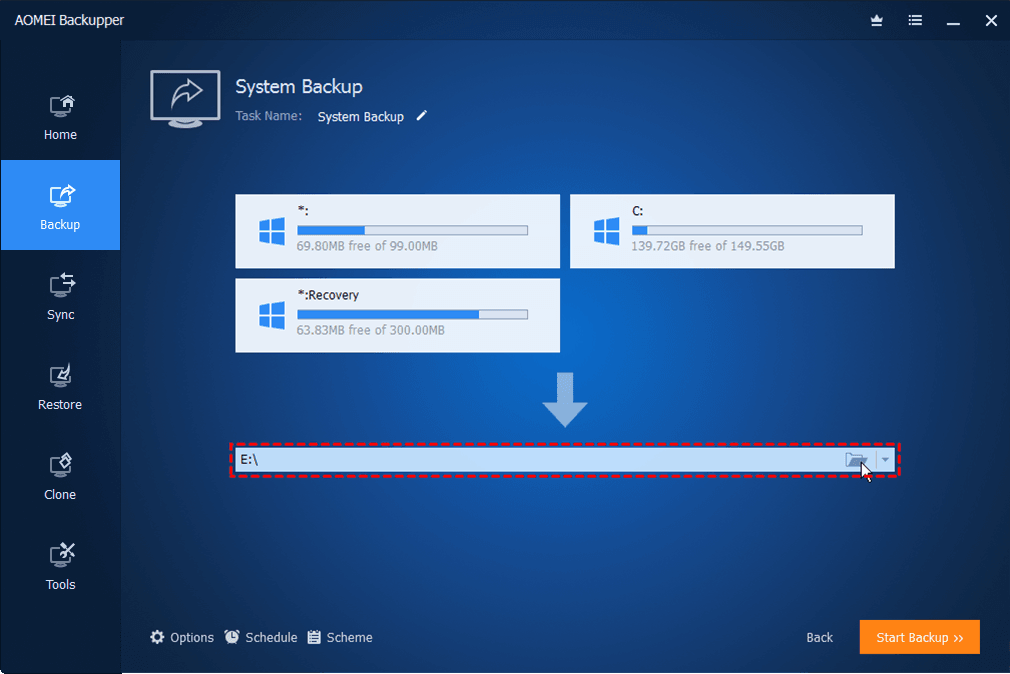

2. Select a destination path to save the system image. Please save the created backup image at an accessible place for the target computer, such as removable device or network location.

Select Backup Destination

3. Click Start Backup to begin the backup process.

Step 3: Windows 10 image backup restoring to different hardware

Note: The following tutorial is based on the scenario where the target computer has no system or is unbootable. If your target computer can boot normally, then you do not need to create a bootable media, just install AOMEI Backupper on the target computer to perform a Universal Restore.

1. Insert the bootable media into the target computer, press the specific key at startup (Del, Esc, F2, etc.) to enter BIOS, and set the bootable media as the first boot option. Then the PC will automatically guide you into AOMEI Backupper interface.

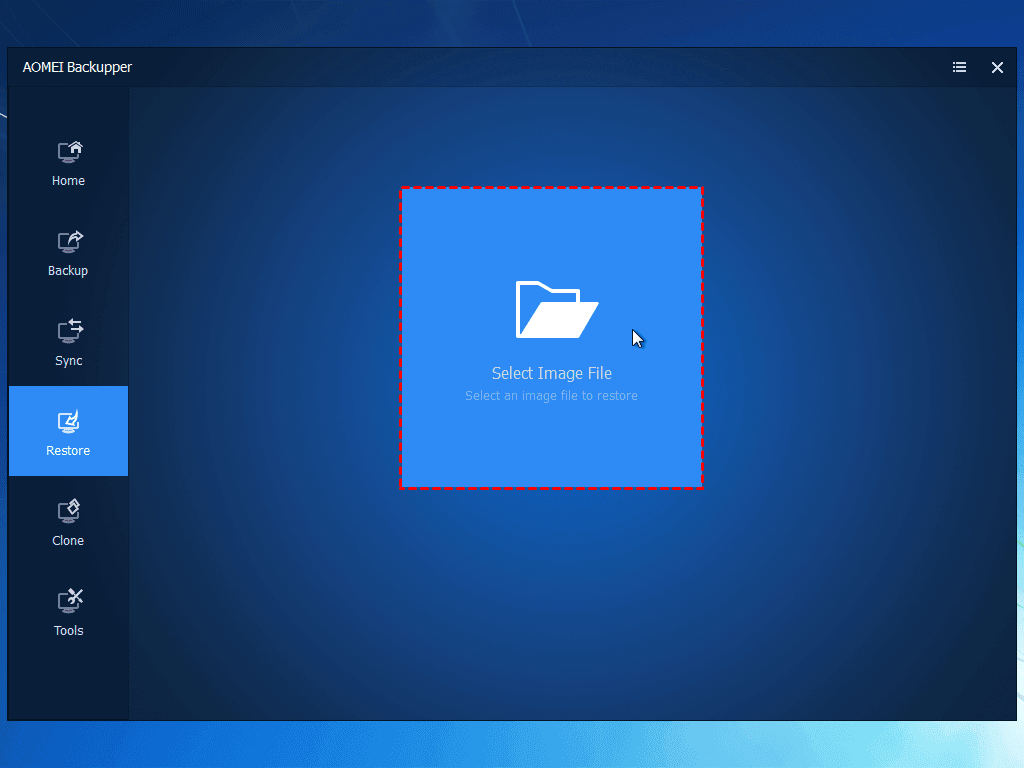

2. Click Restore on the left panel. Then click Select Image File to select the Windows 10 backup image (usually it is a .adi file).

Select Image File

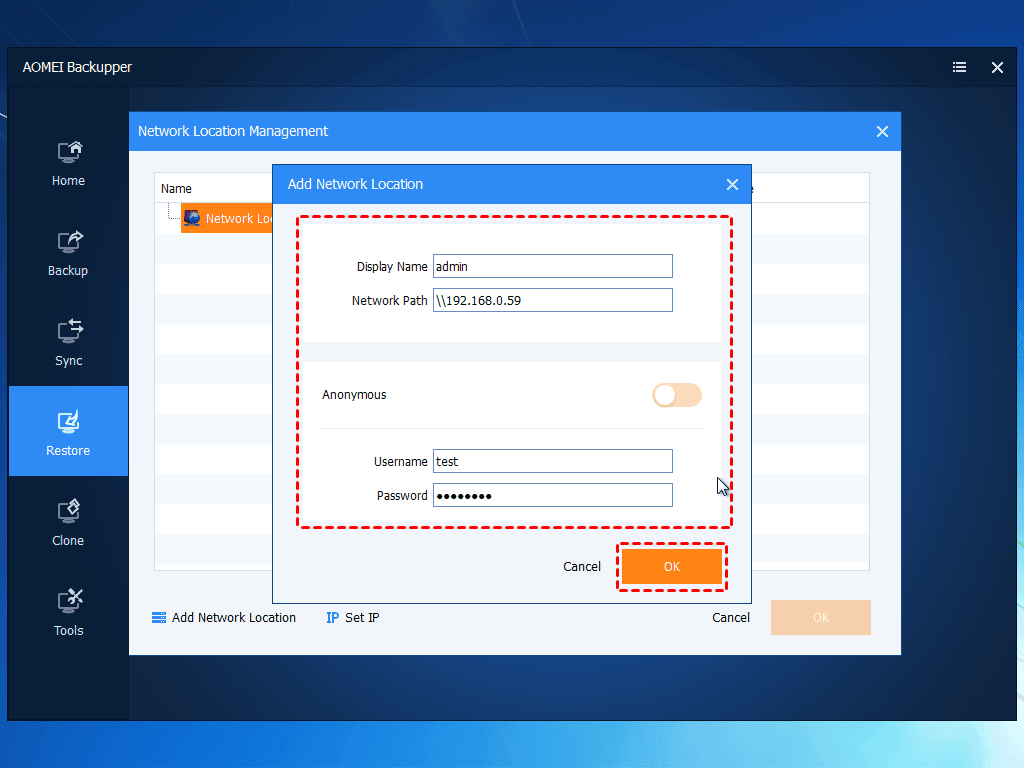

If the Windows 10 backup is saved on network drive, choose Share/NAS > Add Network Location, and type the display name, IP address, username and password of your network drive. Then, you can select the backup image.

Add Network Location

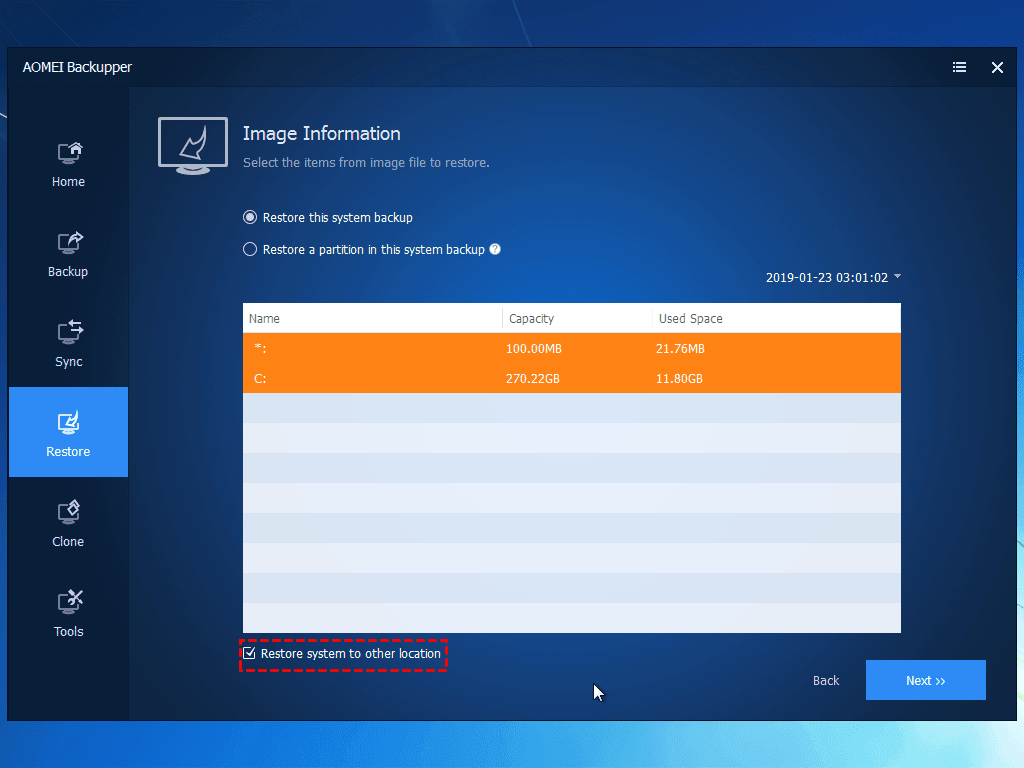

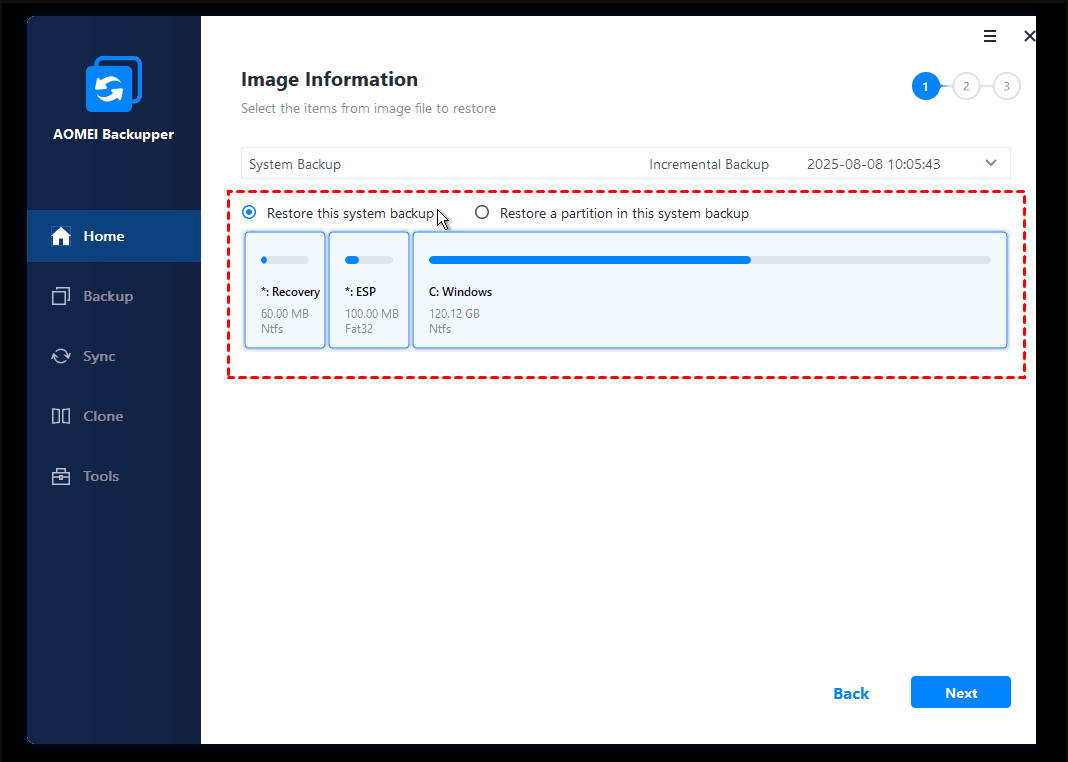

3. Select Restore this system backup and tick Restore system to other location in the bottom.

Restore to Other Location

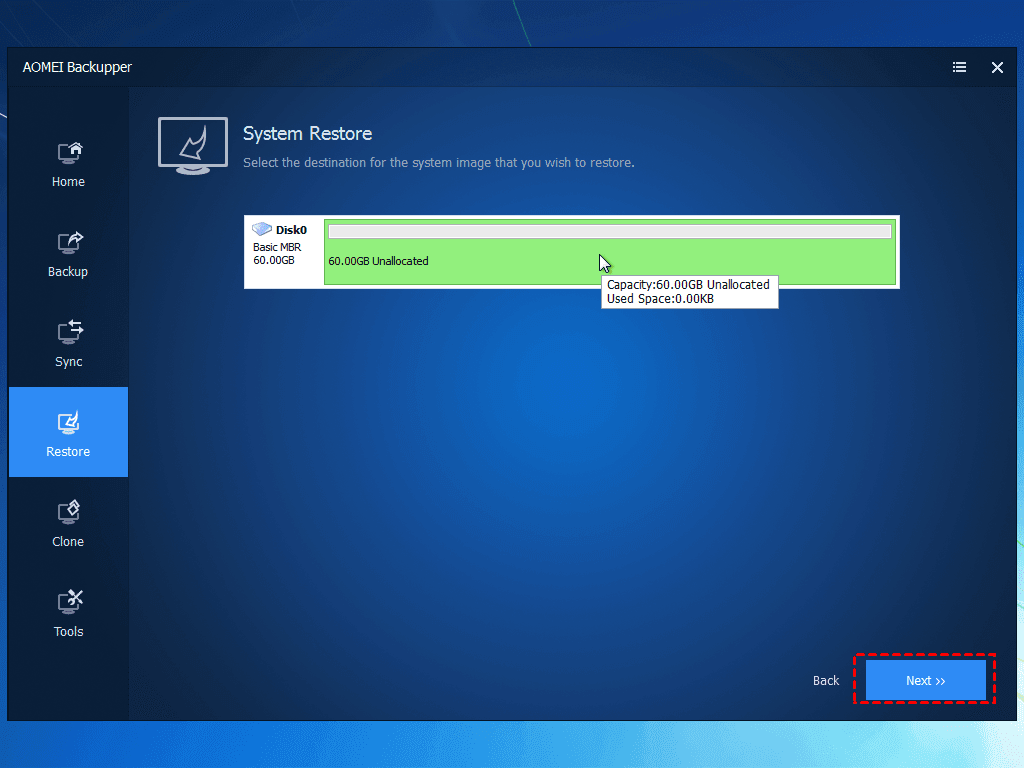

4. Choose the destination disk you want to restore to, then click Next.

Select Restoration Destination

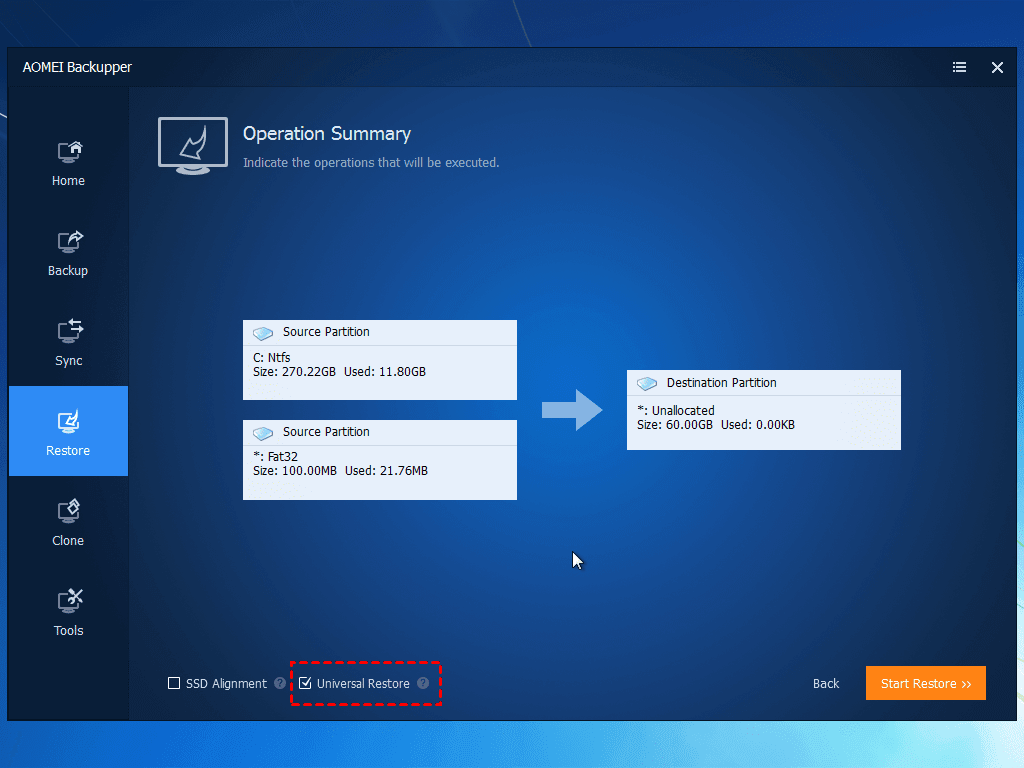

5. Preview all the operations and make sure the Universal Restore option is checked. After confirmation, you can Start Restore. Click Finish when the program has completed restoring Windows 10 backup to dissimilar hardware.

Universal Restore

6. Remove the bootable media and restart your PC. You may still need to change the boot sequence and boot mode in the PC's BIOS/UEFI Setup Utility to have your PC boot successfully.

Tips:
◑ The Universal Restore option is ticked by default if the program detects any hardware of target computer is different from the source computer.
◑ This program also suggests you to check SSD Alignment box if the destination disk is an SSD.

Verdict

AOMEI Backupper Professional makes restoring Windows 10 backup to dissimilar hardware easy as you can see. Create Windows 10 backup image and make bootable media for preparations. Then, boot the target PC with bootable media, and perform restoration there. That is clear.

This operation guidance can be applied in other operating systems as well. In addition to the features mentioned above, AOMEI Backupper is also a disk clone software that can help you clone GPT HDD to SSD without reinstalling. Why not give it a try?
