Extend Partition Wizard does not support to extend partition on a GPT Disk

Running out of disk space on the system drive (usually the C: drive) is a common headache for Windows users. It slows down performance and prevents system updates. When searching for a solution, many users turn to disk management tools to expand their system drive. However, specific complications can arise depending on your disk style, specifically when using the Extend Partition Wizard on modern hard drives.

This article addresses a specific error encountered when using disk management software and provides a definitive guide on how to bypass it using AOMEI Partition Assistant. We will focus on managing storage on a GPT disk (sometimes misspelled as GPT disk by users) and ensuring your system runs smoothly without data loss.

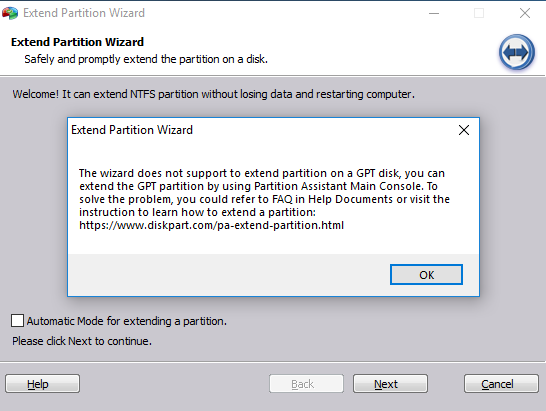

AOMEI Partition Assistant Error: The wizard does not support to extend partition on a GPT disk

While AOMEI Partition Assistant is a comprehensive tool, users utilizing the specific "Extend Partition Wizard" feature may encounter a compatibility roadblock with modern partition tables.

The error message "The wizard does not support to extend partition on a GPT disk" usually appears when a user attempts to use the automated "Extend Partition Wizard" feature specifically on a disk formatted with the GUID Partition Table (GPT) style. GPT is the modern standard that replaces the older MBR (Master Boot Record) style, supporting drives larger than 2TB and offering better data integrity.

However, some legacy automated wizards within disk software are designed primarily for MBR disks. When this error pops up, it does not mean that AOMEI Partition Assistant cannot handle the task. It simply means that the specific automated wizard you clicked is restricted. The software itself is fully capable of performing an AOMEI Extend partition operation on GPT disks using the main console features.

How to fix Extend Partition Wizard does not support to extend partition on a GPT Disk

If the automated wizard fails, the solution is to manually resize the partitions using the robust "Resize/Move Partition" features in the main interface of AOMEI Partition Assistant Professional.

To resolve the "low disk space" issue on a GPT disk, we need to generate unallocated space from a data drive (like D:) and merge it into the system drive (C:). This method is accurate, authoritative, and prevents data loss.

Here is the step-by-step guide to extend your partition:

Step 1: Shrink the Data Partition (D: Drive)

Step 1. Launch AOMEI Partition Assistant Professional. In the main interface, locate your D: drive (or another partition with ample free space).

Step 2. Right-click on the D: drive and select "Resize/Move Partition". In the pop-up window, place your mouse pointer on the left border of the partition bar and drag it towards the right.

This action will shrink the D: drive and create unallocated space before it (directly adjacent to the C: drive). Click "OK".

Step 2: Extend the System Partition (C: Drive)

Step 1. You will now see a block of "Unallocated" space sitting between your C: drive and D: drive in the main window. Right-click on the C: drive and select "Resize/Move Partition".

Step 2. In the pop-up window, drag the right border of the partition bar rightwards into the unallocated space.

This action will add the free space to your system drive. Click "OK".

Step 3: Apply the Changes

You will return to the main console. The changes are currently pending preview. Click the "Apply" button on the top toolbar to execute the operation.

The software may require a reboot to finalize the extend partition operation since it involves the system drive.

If there is still any problem, please feel free to contact our AOMEI support team.

Other Handy Functions of AOMEI Partition Assistant
Beyond resizing, AOMEI Partition Assistant is a powerful toolkit. It includes features such as "Disk Clone" for upgrading to SSDs, "App Mover" to free up space by moving installed programs to another drive, and "MBR to GPT Converter" to help users upgrade to Windows 11 without data loss.

To sum up

Encountering the error "The wizard does not support to extend partition on a GPT disk" can be confusing, but it is not a dead end. It is merely a limitation of one specific automated feature, not the software itself. By manually utilizing the "Resize/Move Partition" function in AOMEI Partition Assistant Professional, you can easily generate unallocated space and extend partition sizes on any GPT disk. This method ensures your operating system has enough room to breathe, improving performance and stability without the need to format your computer.

FAQs

Q1: What is the difference between an MBR disk and a GPT disk?
A: MBR (Master Boot Record) is an older partition style that only supports disks up to 2TB and four primary partitions. GPT (GUID Partition Table) is the modern standard, supporting disks larger than 2TB and an almost unlimited number of partitions. Windows 11 requires a GPT disk.

Q2: Will I lose my data if I use AOMEI Partition Assistant to extend my partition?
A: No, providing you follow the steps correctly. AOMEI Partition Assistant is designed to resize and move partitions without data loss. However, it is always an authoritative recommendation to back up important data before performing any disk operations.

Q3: Can I use Windows Disk Management to extend my C drive?
A: Yes, but with limitations. Windows Disk Management's "Extend Volume" option is often greyed out unless there is unallocated space immediately to the right of the C drive. You would typically have to delete the D drive to create this space, causing data loss. AOMEI Partition Assistant avoids this by allowing you to move and resize without deletion.

Q4: Why do some users search for "gtp disk"?
A: "GTP disk" is a common typo for "GPT disk." They refer to the same thing: the GUID Partition Table architecture used by modern computers.

Q5: Does AOMEI Partition Assistant support SSDs?
A: Yes, it fully supports SSDs, HDDs, and external drives. It even includes a partition alignment tool specifically to optimize the performance of SSDs.
