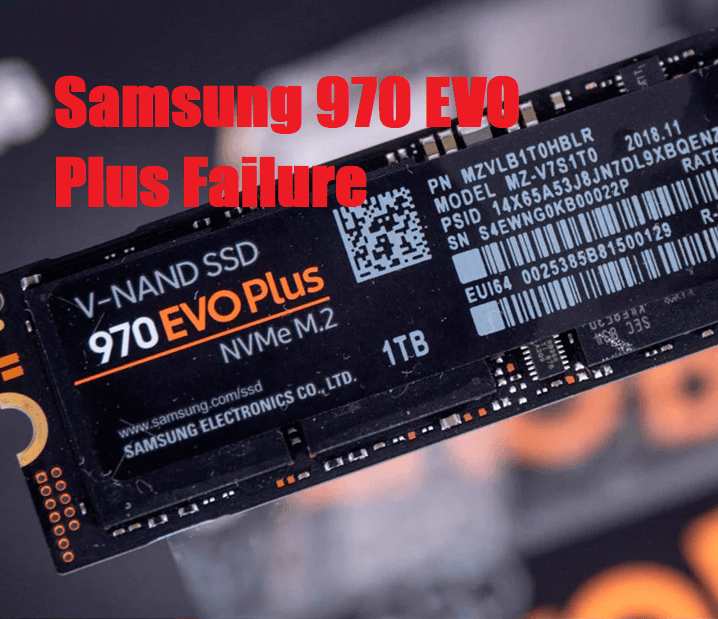

Samsung 970 EVO Plus Failure: Fix It Now
Don't worry if you encounter Samsung 970 EVO Plus failure. Get through this post to get 3 simple but useful solutions. Also, if needed, it shows you how to switch to a new SSD without losing anything.
By Jonna Updated on May 14, 2025
User Case: Samsung 970 EVO Plus 1TB Failure
I run a Samsung 970 EVO Plus 1TB to backup my game data on my PC. But today, it suddenly went to random read failures and went into read-only mode. I can't delete files from it or format it at all. How can I fix the Samsung 970 EVO Plus failure?
When Samsung 970 EVO Plus failing on your PC, your device may suddenly stop booting, your files vanish, or the SSD isn't recognized at all. The EVO 970 Plus failure doesn't usually stem from one single cause. It’s often a mix of hardware aging, firmware bugs, or software conflicts. Several common culprits include faulty motherboard ports, firmware bugs, overheating, driver conflicts, and so on.
This guide dives into how to fix Samsung 970 EVO failure, and presents a Samsung SSD cloning software, if needed, to replace your SSD without losing data.
AOMEI ClonerReplace Samsung 970 EVO Plus with a new drive without data loss using a reliable disk clone software.
How to Fix Samsung 970 EVO Plus Failure in 3 Simple Ways
Let's go through a few essential troubleshooting methods for Samsung 970 EVO Plus failure.
Method 1. Check SSD Connection
Most Samsung 970 EVO Plus problems result from improper connection. A loose or improperly seated SSD can lead to intermittent failures or complete invisibility.
Power down your device, open the case, and locate the M.2 slot. Carefully unscrew and remove the Samsung 970 EVO Plus SSD, then reinsert it firmly. Ensure it's secured with the mounting screw and lying flush with the motherboard. Then, reboot and check the BIOS to see if the drive is detected.
Method 2. Update Firmware
Samsung regularly releases firmware updates to fix bugs and improve stability. An outdated firmware version might be causing the drive to behave erratically.

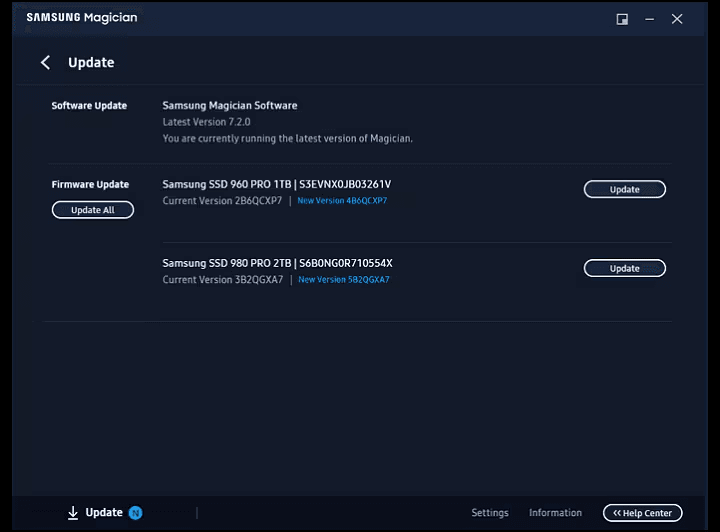

Step 1. Make sure the 970 EVO Plus SSD is connected and detected properly. Download and launch the Samsung Magician software.
Step 2. Select Update in the lower-left corner. If a firmware update is available, an icon labeled N, for new, will appear next to Update.
Step 3. Click on the Update button next to the Samsung 970 EVO Plus device. Then, follow the prompts to install it.
Method 3. Update Driver
If it is not related to the Samsung 970 EVO Plus firmware issue, Windows may be using a generic or outdated NVMe driver that causes compatibility issues.
Step 1. Right-click Start menu > Device Manager.
Step 2. Expand Disk Drives, locate your Samsung 970 EVO Plus.
Step 3. Right-click it and choose Update driver. Select Search automatically for drivers to update drivers.
Easiest Way to Replace Samsung 970 EVO Plus without Data Loss
If you are tired of dealing with various Samsung 970 EVO Plus issues - freezes, random file corruption, or slowdowns - replacing it may be the best option. But reinstalling Windows and restoring everything from scratch is time-consuming and stressful.
That's where disk cloning comes in. With a professional and reliable disk cloning software like AOMEI Cloner, you can create an exact replica of your 970 EVO Plus to a new SSD, no reinstall required.
AOMEI Cloner- User-friendly interface - With a simple and intuitive interface, it is easy to use for all levels of users.
- Disk/system/partition clone - Selectively clone an entire disk/only the operating system/specific partitions to another, e.g., cloning boot drive to new SSD or migrating only Windows 10 installation to new SSD.
- Cloning disks of different sizes - Offer intelligent clone to copy only the used sectors for migrating to a smaller SSD/HDD. And it is also applicable to clone every sector from one drive to another.
100% SecureStep-by-Step Guide to Clone SSD with AOMEI Cloner:
Step 1. Use an M.2 enclosure or a USB to NVMe adapter to connect the new SSD, which you wish to migrate to, to your computer.
Step 2. Download and launch AOMEI Cloner. Select Clone > Disk Clone.
Step 3. Choose your Samsung 970 EVO Plus as the source disk. Then, pick the new SSD as the destination disk.
Step 4. Check SSD Alignment to improve performance for the target SSD if you’re cloning to an SSD. Review your cloning settings and tap on Start Clone to migrate everything from Samsung 970 EVO Plus to the new disk.
💡Note: With the Edit Partitions feature, you could adjust the partition size and partition style of the destination disk.
▶Copy without resizing partitions: It does not resize the partitions.
▶Add unused space to all partitions: It reallocates unallocated space to each partition on the destination disk and resizes it according to the disk size.
▶Manually adjust partition size: It allows you to extend unallocated space to any partition on the destination disk as needed.
▶Convert the destination disk from MBR (GPT) to GPT (MBR): It helps you to convert the partition style of the destination disk if it is different from the source disk.
When the cloning process is done, you could turn off your computer, swap the Samsung 970 EVO Plus with the cloned drive, and enjoy the new disk seamlessly.
FAQs about Samsung 970 EVO Plus Failure
1. Is the Samsung 970 EVO Plus any good?
Despite the occasional Samsung 970 EVO Plus failure, this SSD is one of the top-performing drives for gaming and productivity. It offers fast read/write speeds, solid endurance ratings, and excellent thermal management.
2. How fast is the Samsung 970 EVO Plus 1TB NVMe SSD?
You can expect read speeds up to 3,500MB/s and write speeds around 3,300MB/s under ideal conditions. It's a beast for large file transfers, gaming, and booting.
3. Why is my Samsung M.2 drive not showing up?
Several reasons might explain this:
- Drive not initialized: Use Disk Management to initialize it.
- Wrong BIOS settings: Enable NVMe and set the correct boot order.
- Driver issues: Install the Samsung NVMe driver.
- Firmware bugs: Update using Samsung Magician.
- Physical problems: Re-seat the SSD or test in another machine.
If it doesn't show up anywhere, not even in BIOS, it could be a complete hardware failure.
Conclusion
Samsung 970 EVO Plus failure can be frustrating, but it doesn't have to mean the end of your data or system. From simple connection checks to firmware updates, there are multiple ways to fix it. What's more, you could also replace your SSD with a new one using tools like AOMEI Cloner while keeping your system bootable and data safe.
