Razer Blade 14/15/16/17/18 SSD Upgrade: Complete Guide

Key Takeaways of Razer Blade SSD Upgrade:
💦 Upgrading SSD for Razer Blade can dramatically improve system responsiveness and application load times.
💦 Using cloning software ensures your data and system settings are retained during Razer Blade SSD upgrade, allowing you to migrate Windows system, settings, and personal data to another drive with a smooth boot after cloning.
💦 After cloning, you could either choose to replace laptop hard drive with SSD or add a second SSD to Razer Blade for different situations and needs.

Can you upgrade SSD on Razer Blade?

Absolutely! Most Razer Blade laptops are designed with upgradability. Depending on the model, you may have one or two M.2 slots, allowing for SSD upgrades or additions. For example:

• Razer Blade 14: Only has one SSD slot for upgradeable storage.
• Razer Blade 15: Typically has two M.2 NVMe PCIe slots, one for the primary drive and another for expansion. Some models may have a 2.5" SATA SSD slot in addition to the M.2 slots.
• Razer Blade 17: Similar to the Blade 15, it usually has two M.2 NVMe PCIe slots for SSDs.
• Razer Blade 18: Also features two M.2 NVMe PCIe slots, with the potential for using double-sided SSDs in both.

How to perform Razer Blade SSD upgrade: step by step

Razer Blade SSD replacement involves 3 main parts: connecting the new SSD, data migration from old drive to new SSD, and replacing the old drive. Let's check them one by one!

Part 1. Connect new SSD to Razer Blade laptop

Adding a new SSD to your Razer Blade laptop requires a number of considerations, such as performance, reliability, and compatibility. Check the size and type of SSD compatible with Razer Blade laptop. For example, the Razer Blade 15" (2023) has two SSD slots that support both SATA and PCIe interfaces. You can choose different SSD options depending on your needs and budget. Here are 3 solid SSD upgrade recommendations for the Razer Blade:

• Samsung 990 Pro 1TB (PCIe Gen 4) with read speeds up to 7,450 MB/s
• WD Black SN850X (Gen 4) with read speeds up to 7,300 MB/s
• Crucial P3 Plus (PCIe Gen 3), slower than top Gen 4 SSDs, but cheaper

Whatever SSD you choose, please make sure the capacity of the SSD is larger than the used space of your old disk. After that, connect the new SSD following the steps below:

Step 1. You'll need a T5 screwdriver, a compatible M.2 NVMe SSD, and an external SSD enclosure or adapter.

Step 2. Shut down your laptop and unplug all cables. Use the T5 screwdriver to remove the screws on the bottom panel. Carefully lift the panel to expose the internal components.

Step 3. If adding a second SSD, locate the empty M.2 slot and insert the new drive, securing it with a screw. If replacing the existing SSD, remove it and insert the new one in its place.

Part 2. Move all data from old drive to new SSD

Reliable cloning software can help you migrate operating system, applications, and all your files with simple clicks. We highly recommend you try AOMEI Cloner to transfer everything without any data loss.

It offers Disk Clone to copy entire hard drive, System Clone to migrate only Windows OS, and Partition Clone to copy specific partitions. With it, you could either clone HDD to SSD (larger or smaller), clone SSD to SSD(NVMe or SATA), or only move OS to SSD with ease. Known for its user-friendly interface, this cloning software also offers the following features:

AOMEI Cloner

Best System and Disk Cloning Software

• Compatible with HDDs and SSDs from almost all manufacturers.
• Clone hard drive with bad sectors, useful when your hard drive contains bad sectors.
• Allow cloning of larger hard drive to smaller SSD by cloning only the used space.
• Improve the performance of the target SSD disk and extend its lifespan with the powerful feature SSD Alignment.

Free Download
Win 11/10/8/7/Server

100% Secure

How to clone hard drive for Razer Blade 15 SSD upgrade with AOMEI Cloner? Here is what to do:

Step 1. Download and install the AOMEI Cloner software on your Razer Blade.

Step 2. Make sure the new SSD is connected and recognized by Razer Blade. Run the cloning software, select Clone and then Disk Clone. To migrate OS only to SSD, choose System Clone.

Step 3. Choose your current system drive as the source disk. Then, select the new SSD as the cloning target drive.

Step 4. Check SSD Alignment to optimize its performance. Then, click on Start Clone to initiate the cloning process.

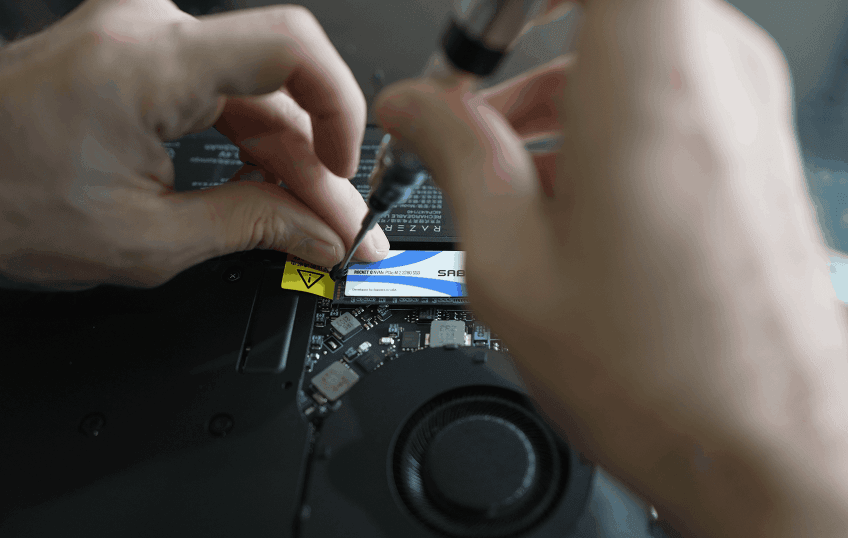

Part 3. Replace Razer Blade disk with the cloned SSD

Follow these detailed steps to carefully replace your old Razer Blade disk with the new cloned SSD.

Step 1. Ensure the laptop is turned off and disconnected from any power source.

Step 2. Using the T5 Torx screwdriver, remove the screws and gently lift off the back panel.

Step 3. Unscrew and carefully remove the old hard drive from its slot. Insert the cloned SSD into the original slot, secure it with the screw, and reattach the back panel.

Step 4. Power on your laptop, and it should boot from the new SSD.

If you don’t want to let Razer Blade replace SSD but just want to add SSD with an extra SSD slot, restart your Razer Blade and repeatedly press the F1 or Del key during startup to enter BIOS. Then, change the new SSD as the boot drive under the Boot section and save the changes.

Why need cloning software for SSD upgrade on Razer Blade?

Cloning software is essential for an SSD upgrade on a Razer Blade laptop because it simplifies the entire migration process and ensures data integrity.

• Preserves your system setup: Cloning software duplicates everything, your OS, programs, files, and settings. You won’t need to reconfigure Windows or reinstall any software.
• Avoids data loss: Manual file transfers risk leaving important files behind. Cloning tools minimize human error by transferring the entire disk.
• Saves time and effort: Reinstalling Windows and all applications can take hours, not to mention setting up preferences, updates, and licenses. Cloning is a one-time process that completes data transfer much faster.

FAQs about Razer Blade SSD upgrade

#1. Does Razer Blade 15 have 2 SSD slots?

Yes, many Razer Blade 15 models come with two M.2 SSD slots, allowing for storage expansion or RAID configurations.

#2. What is the best SSD for Razer Blade 15?

The optimal SSD depends on your performance needs and budget. High-quality NVMe SSDs from reputable brands like Samsung 970 EVO Plus and Western Digital Black SN850 are commonly recommended.

#3. What ports does the Razer Blade 15 have?

The Razer Blade 15 typically includes a variety of ports, such as USB-A, USB-C, HDMI, and Thunderbolt, providing versatile connectivity options.

#4. Can Razer Blade 15 add a second SSD?

Yes, if your model has an available M.2 slot, you can add a second SSD for additional storage.

#5. Should I perform Razer Blade RAM upgrade or SSD upgrade?

Both upgrades offer performance benefits. Upgrading the SSD improves storage speed and capacity, while increasing RAM enhances multitasking capabilities. Assess your specific needs to determine which upgrade is more beneficial.

Conclusion

Performing a Razer Blade SSD upgrade can dramatically improve the performance of your laptop. AOMEI Cloner is a trusted disk cloning tool that simplifies the process and helps to eliminate the hassle of reinstalling Windows operating systems and other applications. Download and give it a try, you should never miss it.
